Gas Thermal Imager Cameras

ITI SF6 320

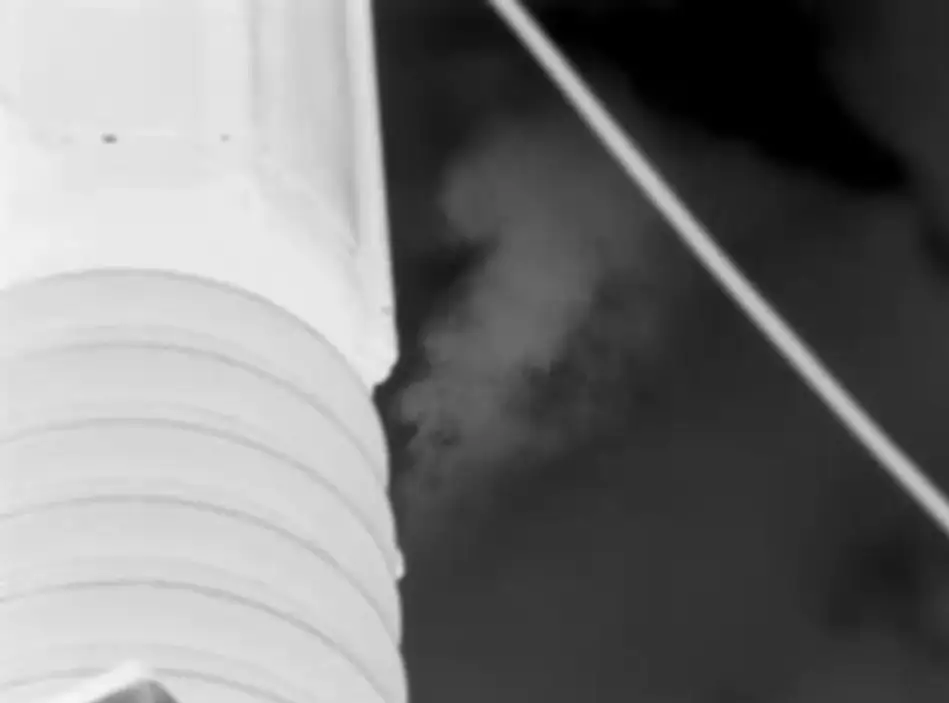

The ITI SF Gas Thermal Imager series, featuring the SF320 and SF640 models, is engineered for precise sulfur hexafluoride and other gas leak detection utilizing a QWIP detector with infrared resolutions up to 640x512. These imagers operate within a 10.3 to 10.8 µm spectral range and deliver high thermal sensitivity below 0.025°C.

Equipped with a 5.8-inch sunlight-visible capacitive touchscreen, a built-in color viewfinder, and a 5-megapixel digital camera with an LED light, the units offer advanced analysis tools including image fusion, IMIX, and super-resolution. They are powered by a removable rechargeable lithium battery providing over two hours of operation and include a 32G high-speed SD card alongside optional GPS positioning.

Key Specifications:

  • Resolution: 320x256
  • Thermal Sensitivity: ＜0.025°C（@30°C）
  • Display: 5.8" 1024x768 Outdoor Viewable Display
Product Data Sheet 📄 Contact for Pricing

Top Technical Specifications

Specification Category Technical Details
Detector & Resolution QWIP detector with IR resolutions of 640x512 (SF320) or 320x256 (SF640). Pixel spacing of 15μm (SF320) or 30μm (SF640).
Thermal Performance Thermal sensitivity <0.023°C (SF320) / <0.025°C (SF640) @ 30°C. Spectral range of 10.3-10.8μm with a central wavelength of 10.55μm. Standard 14.5° lens with automatic lens identification.
Temperature Measurement Range -20°C to 70°C (gas mode), -20°C to 150°C (low), 0°C to 410°C (medium). Accuracy of ±2°C or ±2% of reading.
Display & Imaging 5.8" sunlight-visible capacitive touchscreen and built-in color viewfinder (≥1024x768). Supports PIP, IMIX, image fusion, super-resolution (4x pixels), and 10 color palettes.
Auxiliary Systems Built-in 5MP digital camera with LED light, 40m laser distance measurement, optional GPS satellite positioning, and standard HDMI video output.
Physical & Environmental Operating temp: -20°C to 40°C; Protection: IP rating not specified (humidity <95% non-condensing). Powered by a removable rechargeable lithium battery with >2 hours working time at 25°C.
