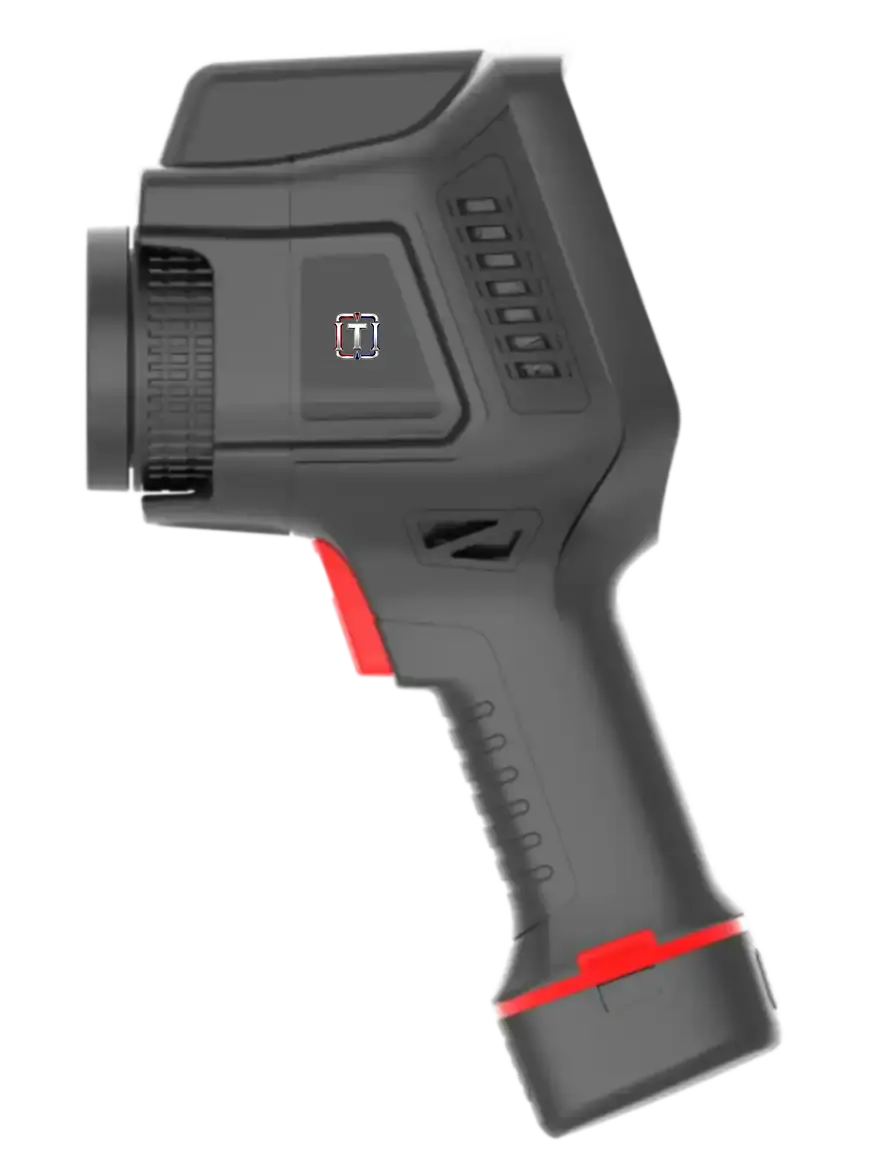

ITI IR 640
The ITI IR-640 serves as the high-resolution flagship model in this handheld thermal camera series, featuring an uncooled FPA VOX detector delivering a 640x512 pixel infrared resolution. Operating within the 8–14 µm spectral range with a 30 mK thermal sensitivity, it pairs higher thermal detail with an expanded 5-inch visible display screen for clearer on-site analysis. Its spatial resolution provides fine optical clarity, achieving 0.66 mrad with the standard 24° lens and up to 0.16 mrad with the optional 6° lens.
Capable of standard temperature measurements from -20°C to 410°C and optional ranges extending from 300°C up to 2000°C, the camera maintains an accuracy of ±2°C or ±2%. Operational capabilities include a 5 MP visual camera, automatic laser alignment, a 40-meter laser range finder, and full support for radiometric image (.jpg/.png) and video (H.264/full-radiation irv) recording to an SD card. The rugged IP54-rated housing is rounded out by comprehensive wireless options: including Wi-Fi, Bluetooth, optional 4G, and optional GPS—as well as full compatibility with secondary analysis desktop software.
Key Specifications:
- Resolution: 640x512
- Thermal Sensitivity: 30mK
- Display: 5" Outdoor Viewable Display
Top Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Detector & Resolution | Uncooled FPA VOX detector with IR resolutions of 384x288 (IR-384), 480x360 (IR-480), or 640x512 (IR-640). |
| Thermal Performance | 30mK thermal sensitivity (NETD) with a spectral range of 8-14μm. Standard 24° lens with automatic lens identification and optional 48°, 12°, and 6° lenses. |
| Temperature Measurement Range | -20°C to 150°C (low range) / 0°C to 410°C (medium range); optional high temperature ranges from 300°C up to 2,000°C. Accuracy of ±2°C or ±2% of readings. |
| Display & Imaging | 4.3" or 5" visible touch screen display supporting Infrared, visible light, picture in picture, image fusion, and IMIX modes. Features 10 color palettes and 1x-8x digital zoom. |
| Auxiliary Systems | 5MP visible light camera with built-in LED light, 40m laser rangefinder with automatic alignment, Wi-Fi, Bluetooth, optional 4G, and optional GPS satellite positioning. |
| Physical & Environmental | Weight: 1.23kg (including battery); Dimensions: 279 x 135 x 147mm; Encapsulation: IP54; Operation: -20°C to 55°C. Powered by a removable rechargeable lithium battery with >3 hours operating time. |
