Handheld Gas Thermal Imaging Camera
Product Data Sheet 📄
Contact for Pricing

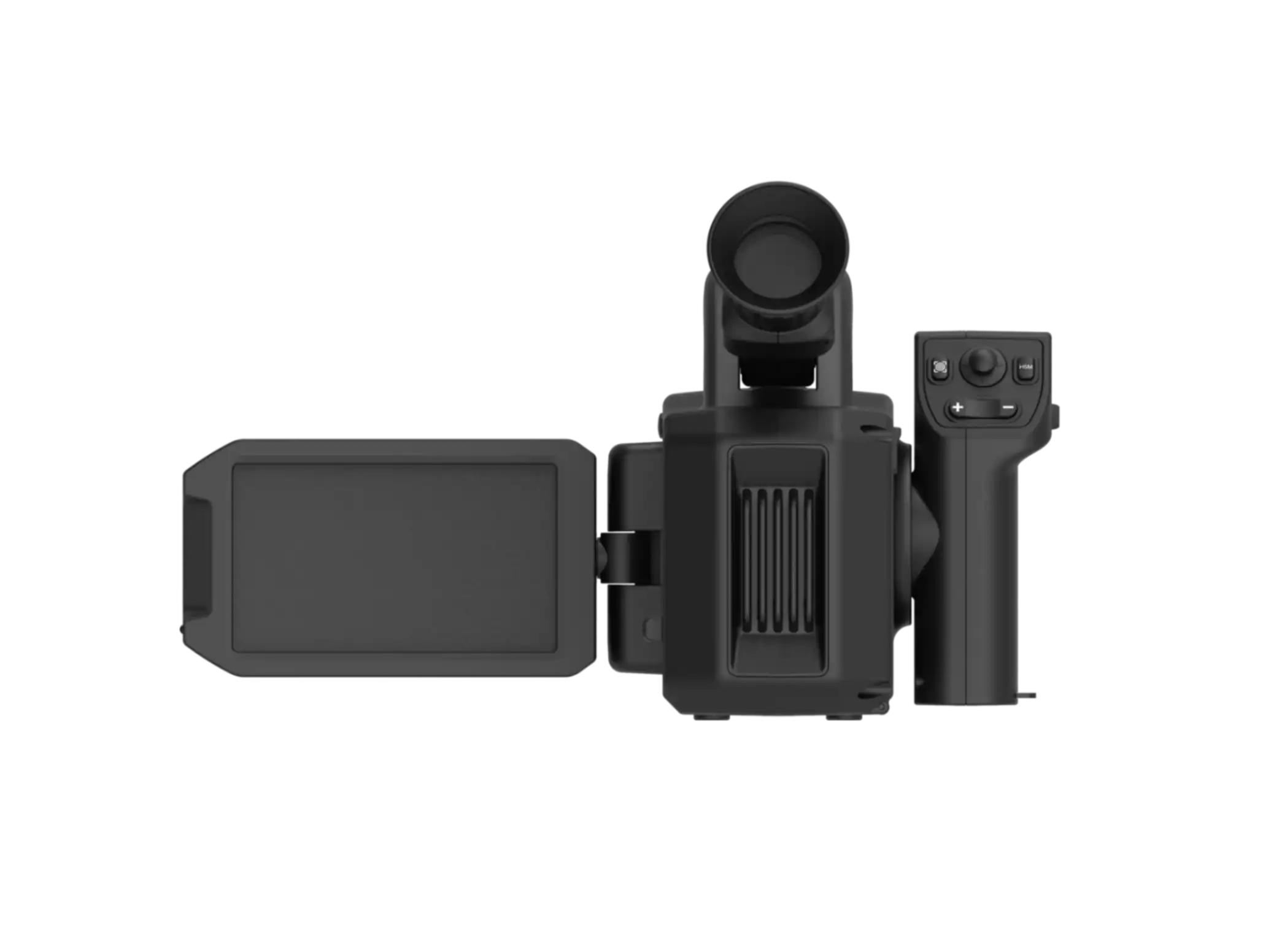

ITI VOC 320
The ITI VOC 320 is a specialized gas thermal imager utilizing a cooled FPA detector with T2SLs or MCT detector materials operating in the 3.1–3.5 µm spectral range. It features a 320x256 detector resolution, a high thermal sensitivity of ≤10mK @30°C, and multiple focusing modes including manual, electric, and one-button autofocus.
The device includes a 5MP visible light camera, an 800x480 LCD monitor, and a 1024x768 OLED viewfinder. Designed for field deployment, it supports 32GB SD card storage, GPS positioning, optional 4G-SIM connectivity, and a rechargeable lithium battery providing at least three hours of operation.
Key Specifications:
- Resolution: 320x256
- Thermal Sensitivity: <10mK @ 30°C
- Display: 5" 800×480 Viewable Outdoor Display
Top Technical Specifications
| Specification Category | Technical Details |
|---|---|
| Detector & Resolution | Cooled FPA detector (T2SLs or MCT) with 320x256 resolution and 3.1-3.5μm spectral range. |
| Thermal Performance | ≤10mK thermal sensitivity (NETD @ 30°C) with standard 18° x 14° lens (F/1.2, 30mm focal length, 1mrad IFOV). Supports manual, electric, and one-button autofocus. |
| Temperature Measurement Range | -20°C to 60°C (low temperature mode) with measurement accuracy of ±2°C or ±2% of readings. |
| Display & Viewfinder | 1024x768 OLED viewfinder paired with a 5" LCD monitor (800x480 resolution). |
| Auxiliary Systems | 5MP CMOS visible light camera with dual fill light, optional GPS satellite positioning, HDMI output, USB 2.0, and optional 4G SIM card connectivity. |
| Physical & Environmental | Weight: ≤2.5kg (including battery); Dimensions: 286 x 154 x 167mm; Operating Temp: -20°C to 40°C. Powered by a rechargeable lithium battery (≥3 hours lifespan) or 12V DC input. Includes standard UNC 1/4"-20 tripod mount. |
